RTOS: OLED I2C TI-RTOS SSD1306 library

- 2月 26, 2022

TI-RTOS SSD1306 library

In the previous article, we described all the necessary functions in one file, but now we have combined them into a library.

tirtos_ssd1306.zip

This library, originally created by Mr. Dmytro Hutsulenko, has been modified to work with TI-RTOS by myself.

Usage:

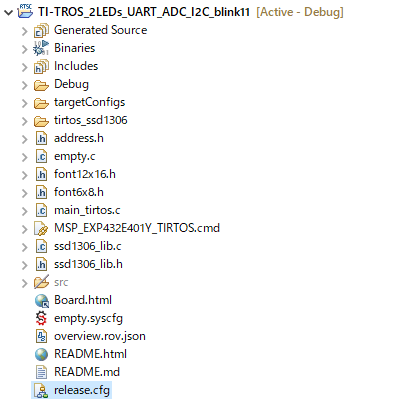

Place the downloaded file in the same hierarchy as the C file.

/*SSD1306*/

#include "ssd1306_lib.h"

header should be read at the beginning.

If you want to update the display periodically in a thread, by opening I2C in the usual way and using the following example, we can display text on the OLED.

void *mainThread5(void *arg0)

{

I2C_init();

I2C_Params iP;

I2C_Handle i2c;

I2C_Params_init(&iP);

iP.bitRate = I2C_400kHz;

iP.transferMode = I2C_MODE_BLOCKING;

i2c = I2C_open(CONFIG_I2C_0, &iP);

// Initialize SSD1306

ssd1306Init(i2c);

fillDisplay (i2c,0x00);

char OLED_buffer[32];

while (1) {

draw6x8Str(i2c,0, 0, "TI-RTOS", 1,0);

draw6x8Str(i2c,0, 1, "/* MSP432E401Y */",1,0);

draw6x8Str(i2c,0, 2, "/* Hello World*/",1,0);

memset(OLED_buffer, 0x00, sizeof(OLED_buffer));

sprintf(OLED_buffer,"V=%f",adcValue0Volt[1]);

draw6x8Str(i2c,0, 3,OLED_buffer,1,0);

Task_sleep(500 * (1000 / Clock_tickPeriod));

}

In the example above, the adcValue0Volt[1] is updated twice a second to update the display. Although not visible in the picture, the value of V in the last line changes with time and is displayed.

As a precaution, when using sprintf, make sure that the task stack size is large. Otherwise, it will stop.

*************************************************

* Redistribution and use in source and binary forms, with or without

* modification, are permitted provided that the following conditions

* are met:

* * Redistributions of source code must retain the above copyright

* notice, this list of conditions and the following disclaimer.

* * Redistributions in binary form must reproduce the above copyright

* notice, this list of conditions and the following disclaimer in the

* documentation and/or other materials provided with the distribution.

* * Neither the name of Texas Instruments Incorporated nor the names of

* its contributors may be used to endorse or promote products derived

* from this software without specific prior written permission.

* THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"

* AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO,

* THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR

* PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR

* CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,

* EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,

* PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS;

* OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,

* WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR

* OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE,

* EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

* ======== empty.c ========

#include <unistd.h> /* For usleep() */

#include <stdint.h>

#include <stddef.h>

#include <string.h>/* to use memset and strcmp*/

#include <stdio.h> /* to use sprintf */

#include <stdlib.h>/* to use sprintf */

/*SSD1306*/

#include "ssd1306_lib.h"

/* Driver Header files */

#include <ti/drivers/GPIO.h>

// #include <ti/drivers/SPI.h>

#include <ti/drivers/UART.h>

extern UART_Handle uart;

extern UART_Params uartParams;

#include <ti/drivers/ADC.h>

// #include <ti/drivers/Watchdog.h>

/* Driver configuration */

#include "ti_drivers_config.h"

#include <ti/sysbios/knl/Task.h> //to use task sleep Task.h is needed.

#include <ti/sysbios/knl/Clock.h> //of caurase, clock.h also.

#include <ti/sysbios/BIOS.h>

/* declaration of original functions*/

void gpioButtonFxn0(uint_least8_t index);

float getADC14(int channel);

/* ADC conversion result variables */

float adcValue0Volt[2];

* ======== mainThread ========

void *mainThread0(uint16_t arg0, UArg arg1)

{

/* 1 second delay */

// uint32_t time = 1000;

/* Call driver init functions */

GPIO_init();

/* Configure the LED pin */

GPIO_setConfig(CONFIG_GPIO_LED_0, GPIO_CFG_OUT_STD | GPIO_CFG_OUT_LOW);

/* Turn on user LED */

GPIO_write(CONFIG_GPIO_LED_0, CONFIG_GPIO_LED_ON);

while (1) {

GPIO_toggle(CONFIG_GPIO_LED_0);

Task_sleep(((uint16_t)arg0) * (1000 / Clock_tickPeriod));

}

void *mainThread1(UArg arg0, UArg arg1)

{

/* 1 second delay */

// uint32_t time = 100; //msec

/* Call driver init functions */

GPIO_init();

/* Configure the LED pin */

GPIO_setConfig(CONFIG_GPIO_LED_1, GPIO_CFG_OUT_STD | GPIO_CFG_OUT_LOW);

/* Turn on user LED */

GPIO_write(CONFIG_GPIO_LED_1, CONFIG_GPIO_LED_ON);

while (1) {

GPIO_toggle(CONFIG_GPIO_LED_1);

Task_sleep(((UInt)arg0) * (1000 / Clock_tickPeriod));

}

void *mainThread2(UArg arg0, UArg arg1)

{

GPIO_init();

/* Configure the LED pin */

GPIO_setConfig(CONFIG_GPIO_LED_2, GPIO_CFG_OUT_STD | GPIO_CFG_OUT_LOW);

/* Turn on user LED */

GPIO_write(CONFIG_GPIO_LED_2, CONFIG_GPIO_LED_ON);

// GPIO_setCallback(CONFIG_GPIO_BTN_0, gpioButtonFxn0);

GPIO_enableInt(CONFIG_GPIO_BTN_0);

return 0;

}

void gpioButtonFxn0(uint_least8_t index)

{

// Toggle the LED

GPIO_toggle(CONFIG_GPIO_LED_2);

}

void *mainThread3(void *arg0)

{

const char echoPrompt[] = "Thread3:";

char UART_TX_buffer[32];

while (1) {

UART_write(uart, echoPrompt, sizeof(echoPrompt));

memset(UART_TX_buffer, 0x00, sizeof(UART_TX_buffer));

sprintf(UART_TX_buffer,"V=%f\n",adcValue0Volt[1]);

UART_write(uart, UART_TX_buffer, sizeof(UART_TX_buffer));

Task_sleep(500 * (1000 / Clock_tickPeriod));

}//end while

}

void *mainThread4(void *arg0)

{

const char echoPrompt[] = "Thread4:\n";

while (1) {

UART_write(uart, echoPrompt, sizeof(echoPrompt));

adcValue0Volt[1]=getADC14(1);

Task_sleep(500 * (1000 / Clock_tickPeriod));

}

float getADC14(int channel)

{

/* ADC conversion result variables */

uint16_t adcValue;

float adcValueVolt;

ADC_init();

ADC_Handle adc; //adc handle

ADC_Params params; //adc parameters

ADC_Params_init(&params); //initialization of parameters

switch(channel){

case 0:

adc = ADC_open(CONFIG_ADC_0, &params); //open adc

break;

case 1:

adc = ADC_open(CONFIG_ADC_1, &params); //open adc

break;

default:

adc = ADC_open(CONFIG_ADC_0, &params); //open adc

}

int_fast16_t res; //for checking adc converting

res=ADC_convert(adc, &adcValue); //second argument should set address.

if (res == ADC_STATUS_SUCCESS) {

adcValueVolt = (float)ADC_convertRawToMicroVolts(adc, adcValue)/1000000.0;

}

ADC_close(adc);

return adcValueVolt;

}

void *mainThread5(void *arg0)

{

I2C_init();

I2C_Params iP;

I2C_Handle i2c;

I2C_Params_init(&iP);

iP.bitRate = I2C_400kHz;

iP.transferMode = I2C_MODE_BLOCKING;

i2c = I2C_open(CONFIG_I2C_0, &iP);

// Initialize SSD1306

ssd1306Init(i2c);

fillDisplay (i2c,0x00);

char OLED_buffer[32];

while (1) {

draw6x8Str(i2c,0, 0, "TI-RTOS", 1,0);

draw6x8Str(i2c,0, 1, "/* MSP432E401Y */",1,0);

draw6x8Str(i2c,0, 2, "/* Hello World*/",1,0);

memset(OLED_buffer, 0x00, sizeof(OLED_buffer));

sprintf(OLED_buffer,"V=%f",adcValue0Volt[1]);

draw6x8Str(i2c,0, 3,OLED_buffer,1,0);

Task_sleep(500 * (1000 / Clock_tickPeriod));

}

************************************
